Telescopic Hydraulic Cylinders

Multi-stage extension for applications where space is limited but long stroke is required. Perfect for dump trucks, cranes, and lifting systems.

01

Single-Acting Telescopic Cylinder

02

Double-Acting Telescopic Cylinder

Why Telescopic Hydraulic Cylinders:

Telescopic hydraulic cylinders provide long stroke in a compact retracted length, making them ideal for applications with space constraints. They allow multi-stage extension for lifting, dumping, and positioning heavy loads efficiently. Designed for dump trucks, cranes, and mobile machinery, they deliver controlled, smooth motion while maintaining high force output in limited installation space.

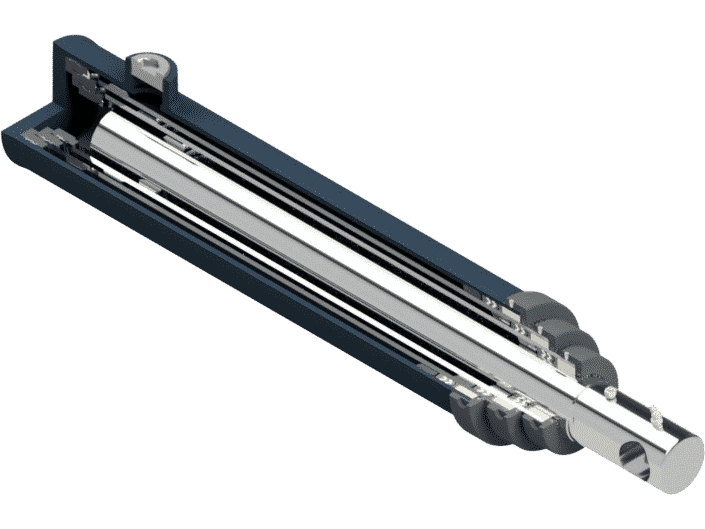

Single-Acting Telescopic Cylinder

Hydraulic extension, gravity retraction. Available in 2–5 stages.

Specs:

Bore Ø [50–250 mm],

Stroke [200–3000 mm]

Pressure [up to 200 bar].

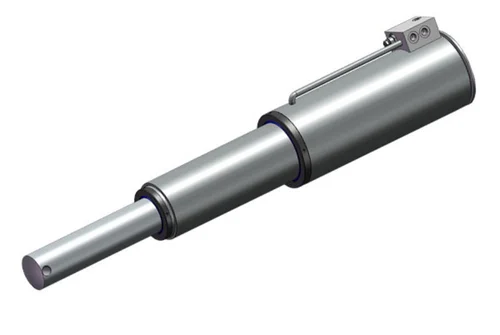

Double-Acting Telescopic Cylinder

Hydraulic extension & retraction for controlled movement.

Specs:

Bore Ø [80–250 mm],

Stroke [300–3000 mm],

Pressure [up to 220 bar].
