Overview
Why Pressure Sensing Hydraulic Cylinder
• Real-time internal pressure monitoring
• Accurate force and load measurement
• Overload protection and safety compliance
• Improved diagnostics and predictive maintenance
• Seamless integration with PLC and automation systems
Ideal for applications requiring measurable hydraulic force and controlled performance.
Product Description

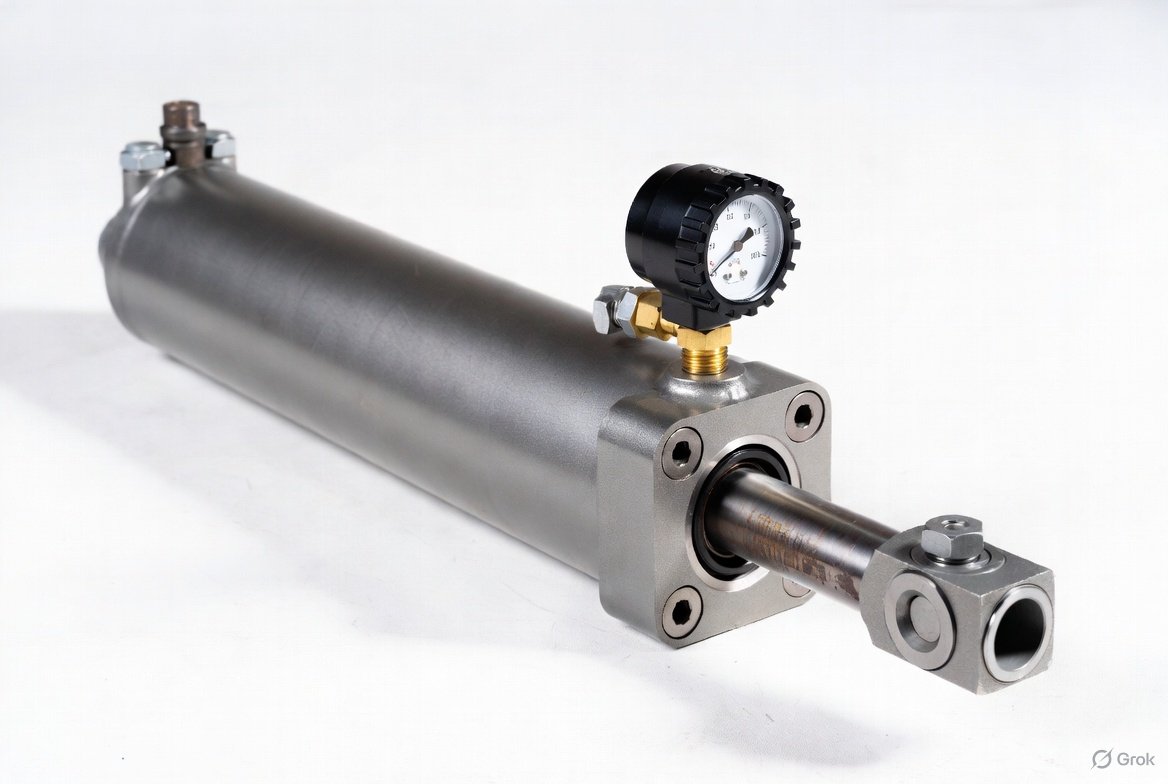

Designed for heavy-duty industrial use, the Pressure Sensing Hydraulic Cylinder combines precision-machined alloy steel construction with integrated pressure transducer technology. It maintains high-pressure resistance, stable load handling, and reliable performance in continuous-duty environments.
The sensor system provides direct hydraulic pressure feedback, allowing operators and automation systems to monitor actual working force in real time.
Sensor Options
| Sensor Type | Description |
|---|---|
| Integrated Pressure Transducer | Built-in internal pressure measurement for direct load feedback |
| Port-Mounted Pressure Sensor | Flexible external configuration for retrofit or custom setups |
Output Options
| Output Signal | Application Use |
|---|---|
| 4–20 mA | Industrial automation & PLC systems |
| 0–10 V | Control panels & monitoring units |
| CANbus / Digital Output | Advanced integrated control systems |
Key Features
• Real-time pressure and force monitoring
• High pressure rating capability
• Heavy-duty sealing for harsh environments
• Compact integrated sensor design
• Smooth hydraulic motion with force verification
• Custom bore size and stroke length options
Typical Applications
• Hydraulic presses
• Lifting and hoisting systems
• Construction machinery
• Mining equipment
• Industrial automation lines
• Material handling systems
Industries Served
• Heavy equipment manufacturing
• Infrastructure and civil engineering
• Energy and utilities
• Industrial processing plants
• Transport and logistics equipment
Optional Customization
• Custom pressure range calibration
• High-temperature sensor configuration
• Corrosion-resistant coatings
• Mounting configurations (flange, clevis, trunnion)
• Integrated temperature monitoring
• Custom hydraulic ram dimensions
kinetix fabworks –
Advanced and modern hydraulic cylinder
